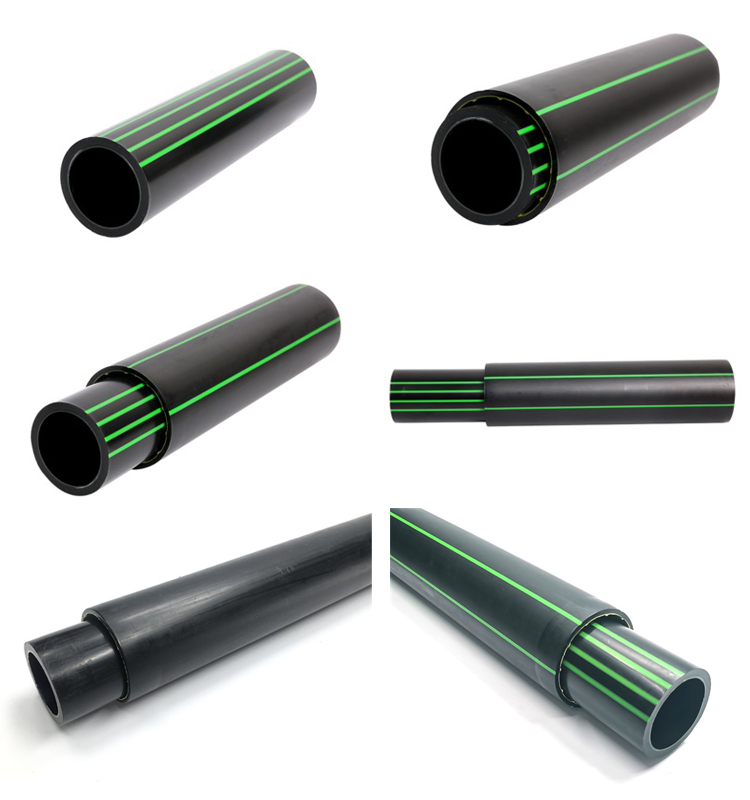

Fuel station underground pvc pipe fittings hdpe double wall corrugate pipes upp pipe

Product Features:
The double-layer structure can monitor the clearance space for leakage;

Natural EVOH resin inner liner in primary and secondary pipes can reach a new level of protection, performance and dependability;

The primary pipe has an electrostatic conductive layer, and the surface resistivity is less than 106 Ω•m;

The design pressure is 1.6MPa, and the rated working pressure is 1MPa;

Operating temperature: -40℃ to 50℃;

Both self-priming (negative pressure) and pressure (positive pressure) can be applied;

Approved according to EN14125:2013 standard, and meet the technical requirements of Sinopec Gas Station Buried Thermoplastic Composite Pipes;

All raw materials are imported with premium quality;

The supporting pipe fittings are all integrated, using high-efficient electrofusion welding technology to avoid leakage.



Model Highlights Diameter (mm) Length(m) Package
S-01-65/54 Conductive pipes with permeation barrier and secondary containment 65/54 100m coil,
6m stick PP winding
S-01-75/63 Conductive pipes with permeation barrier and secondary containment 75/63 100m coil,
6m stick PP winding
S-01-125/110A Conductive pipes with permeation barrier and secondary containment 125/110 100m coil,
6m stick PP winding
